揭开JDK动态代理和CGLIB代理的神秘面纱
CGLIB动态代理
引入简单的CGLIB例子
在讲解CGLIB动态代理之前，先看一下最简单的CGLIB动态代理的例子。
java
import org.springframework.cglib.proxy.Enhancer;
import org.springframework.cglib.proxy.MethodInterceptor;
import org.springframework.cglib.proxy.MethodProxy;
import java.lang.reflect.Method;
public class EnhancerDemo {
public static void main(String[] args) {
Enhancer enhancer = new Enhancer();
enhancer.setSuperclass(EnhancerDemo.class);
enhancer.setCallback(new MethodInterceptorImpl());
EnhancerDemo demo = (EnhancerDemo) enhancer.create();
demo.test();
System.out.println(demo);
}
public void test() {
System.out.println("EnhancerDemo test()");
}
private static class MethodInterceptorImpl implements MethodInterceptor {
@Override
public Object intercept(Object o, Method method, Object[] objects, MethodProxy methodProxy) throws Throwable {
System.err.println("Before invoke " + method);
Object result = methodProxy.invokeSuper(o, objects);
System.err.println("After invoke" + method);
return result;
}
}
}运行结果如下：
EnhancerDemo test()
After invokepublic void com.bruis.learnaop.testcglibaop.EnhancerDemo.test()
Before invoke public java.lang.String java.lang.Object.toString()
Before invoke public native int java.lang.Object.hashCode()
After invokepublic native int java.lang.Object.hashCode()
After invokepublic java.lang.String java.lang.Object.toString()
com.bruis.learnaop.testcglibaop.EnhancerDemo$$EnhancerByCGLIB$$413eae0d@53e25b76可以看到运行结果，除了demo.test()方法之外，System.our.println(demo)也被代理了，首先调用了toString()方法，然后又调用了hashCode，生成的对象为EnhancerDemo的实例，这个类是运行时由CGLIB产生的，Enhancer最关键的步骤就是setCallback()方法来设置拦截器，来拦截代理类的方法。Demo中用到的Enhancer是CGLIB的字节码增强器，用于为无接口的类创建代理proxy，方便对代理类进行拓展，Demo中的代理类就是EnhancerDemo。它的功能与java自带的Proxy类挺相似的，它会根据某个给定的类创建子类，并且非final的方法都带有回调方法。
创建代理对象的几个步骤：
- 生成代理类的二进制字节码文件
- 加载二进制字节码，生成Class对象（例如使用Class.forName()方法）
- 通过反射机制获取实例构造，并创建代理类对象
具体可以查看Enhancer create()源码方法。
深入代理逻辑源码

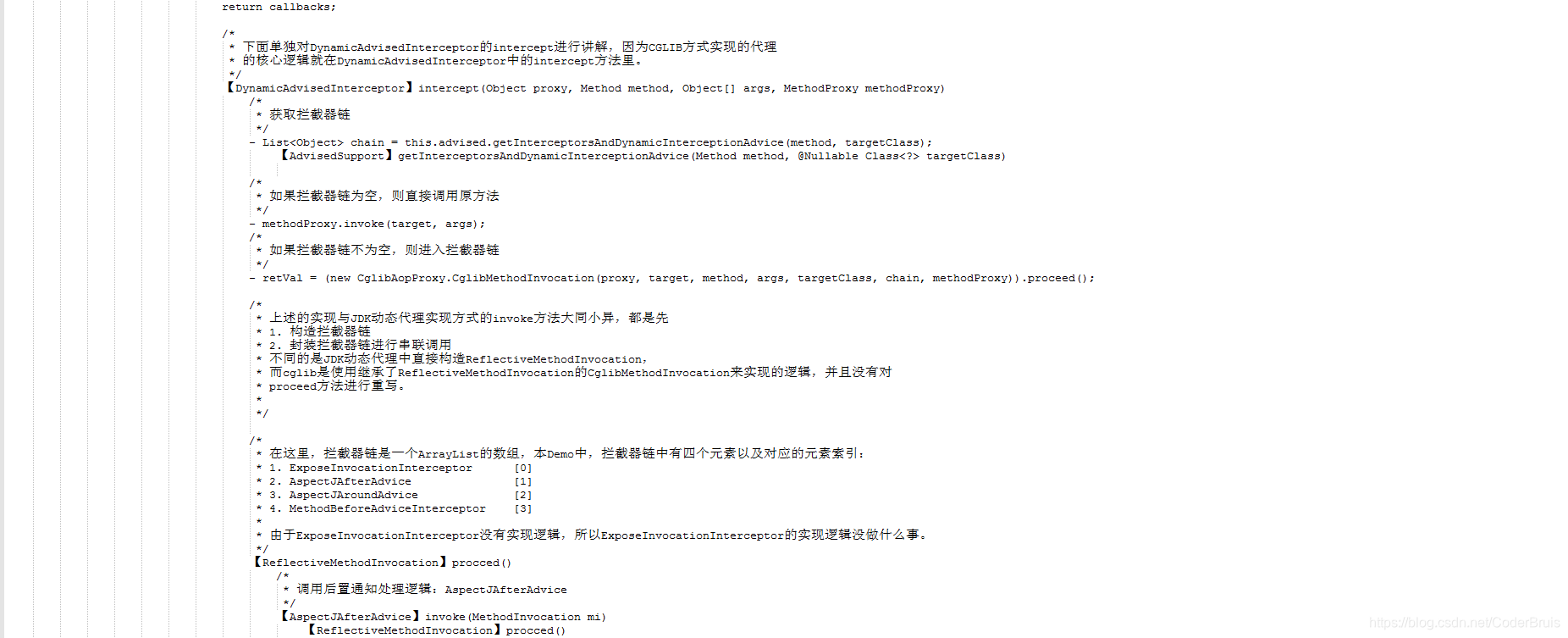

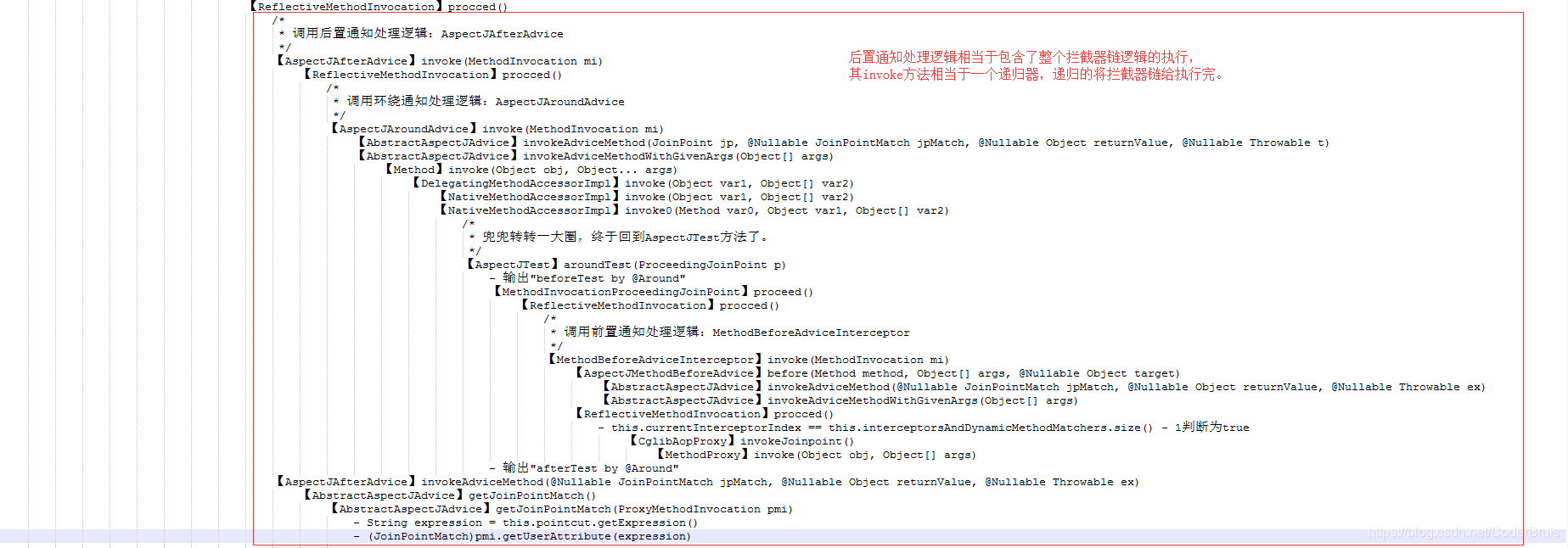

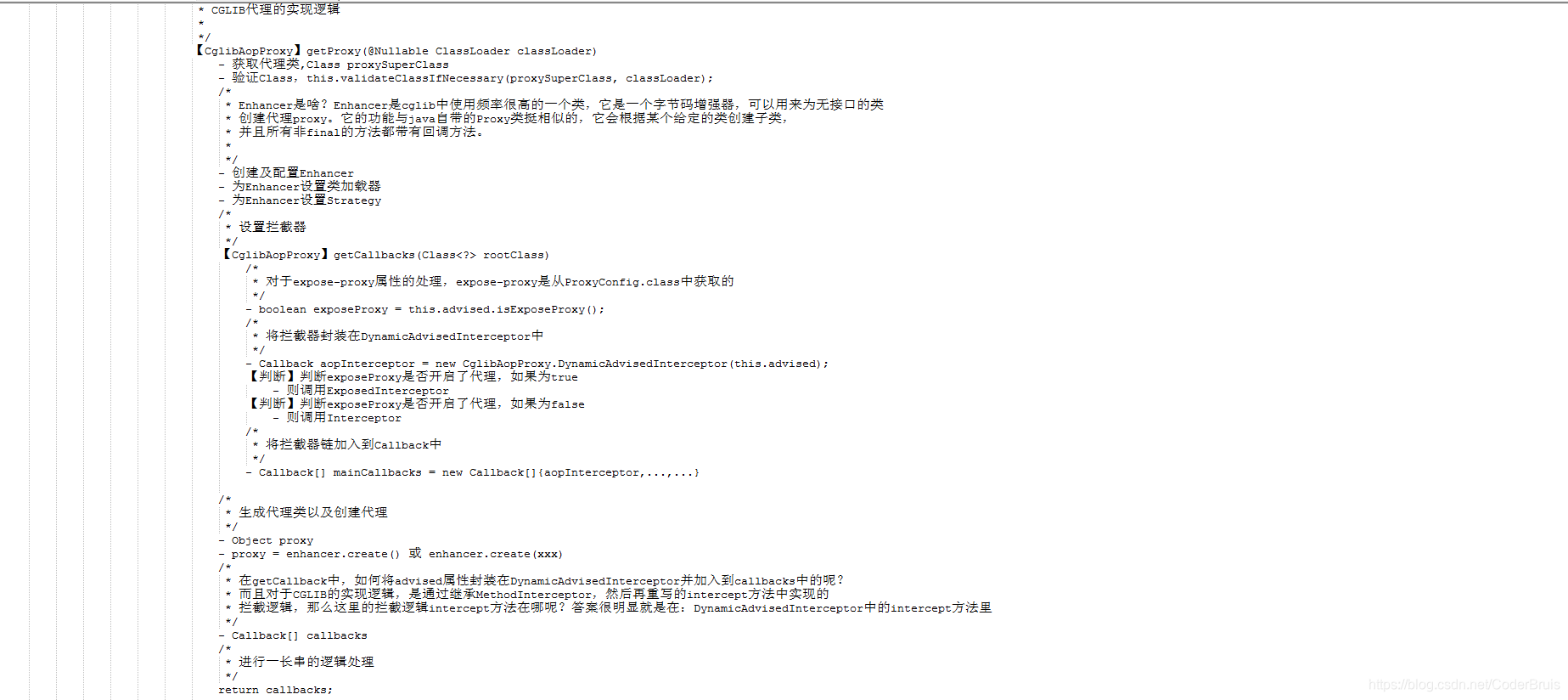

先用一张流程图来大致浏览下整个CGLIB的代码逻辑
回到SpringAOP源码。在SpringAOP（下）中，介绍到DefaultAopProxyFactory源码部分
java
public class DefaultAopProxyFactory implements AopProxyFactory, Serializable {
public AopProxy createAopProxy(AdvisedSupport config) throws AopConfigException {
if (!config.isOptimize() && !config.isProxyTargetClass() && !this.hasNoUserSuppliedProxyInterfaces(config)) {
return new JdkDynamicAopProxy(config);
} else {
Class<?> targetClass = config.getTargetClass();
if (targetClass == null) {
throw new AopConfigException("TargetSource cannot determine target class: Either an interface or a target is required for proxy creation.");
} else {
return (AopProxy)(!targetClass.isInterface() && !Proxy.isProxyClass(targetClass) ? new ObjenesisCglibAopProxy(config) : new JdkDynamicAopProxy(config));
}
}
}
}从createAopProxy()源码中可以看到，创建SpringAOP有两种方式，一、JDK动态代理；二、CGLIB动态代理；点进ObjenesisCglibAopProxy源码，发现它继承了CglibAopFactory
java
class ObjenesisCglibAopProxy extends CglibAopProxy {
protected Object createProxyClassAndInstance(Enhancer enhancer, Callback[] callbacks) {
// 通过增强器获取代理类的class对象
Class<?> proxyClass = enhancer.createClass();
Object proxyInstance = null;
if (objenesis.isWorthTrying()) {
try {
// 创建代理类实例对象
proxyInstance = objenesis.newInstance(proxyClass, enhancer.getUseCache());
} catch (Throwable var7) {
logger.debug("Unable to instantiate proxy using Objenesis, falling back to regular proxy construction", var7);
}
}
if (proxyInstance == null) {
try {
Constructor<?> ctor = this.constructorArgs != null ? proxyClass.getDeclaredConstructor(this.constructorArgTypes) : proxyClass.getDeclaredConstructor();
ReflectionUtils.makeAccessible(ctor);
proxyInstance = this.constructorArgs != null ? ctor.newInstance(this.constructorArgs) : ctor.newInstance();
} catch (Throwable var6) {
throw new AopConfigException("Unable to instantiate proxy using Objenesis, and regular proxy instantiation via default constructor fails as well", var6);
}
}
// 为代理类实例创建回调方法（拦截器链）
((Factory)proxyInstance).setCallbacks(callbacks);
return proxyInstance;
}
}createProxyClassAndInstance方法和前面总结的CGLIB创建代理的步骤一样。
继续查看CglibAopProxy是如何准备Enhancer增强器以及创建拦截器链的。
java
class CglibAopProxy implements AopProxy, Serializable {
public Object getProxy(@Nullable ClassLoader classLoader) {
if (logger.isTraceEnabled()) {
logger.trace("Creating CGLIB proxy: " + this.advised.getTargetSource());
}
try {
// 获取目标代理类
Class<?> rootClass = this.advised.getTargetClass();
Assert.state(rootClass != null, "Target class must be available for creating a CGLIB proxy");
Class<?> proxySuperClass = rootClass;
int x;
if (ClassUtils.isCglibProxyClass(rootClass)) {
proxySuperClass = rootClass.getSuperclass();
Class<?>[] additionalInterfaces = rootClass.getInterfaces();
Class[] var5 = additionalInterfaces;
int var6 = additionalInterfaces.length;
for(x = 0; x < var6; ++x) {
Class<?> additionalInterface = var5[x];
this.advised.addInterface(additionalInterface);
}
}
// 验证class
this.validateClassIfNecessary(proxySuperClass, classLoader);
// 获取增强器
Enhancer enhancer = this.createEnhancer();
// 为Enhancer设置类加载器
if (classLoader != null) {
enhancer.setClassLoader(classLoader);
if (classLoader instanceof SmartClassLoader && ((SmartClassLoader)classLoader).isClassReloadable(proxySuperClass)) {
enhancer.setUseCache(false);
}
}
// 设置代理类，这一步很关键哦。
enhancer.setSuperclass(proxySuperClass);
enhancer.setInterfaces(AopProxyUtils.completeProxiedInterfaces(this.advised));
enhancer.setNamingPolicy(SpringNamingPolicy.INSTANCE);
// 设置strategy策略器
enhancer.setStrategy(new CglibAopProxy.ClassLoaderAwareUndeclaredThrowableStrategy(classLoader));
Callback[] callbacks = this.getCallbacks(rootClass);
Class<?>[] types = new Class[callbacks.length];
for(x = 0; x < types.length; ++x) {
types[x] = callbacks[x].getClass();
}
// 设置回调过滤器
enhancer.setCallbackFilter(new CglibAopProxy.ProxyCallbackFilter(this.advised.getConfigurationOnlyCopy(), this.fixedInterceptorMap, this.fixedInterceptorOffset));
enhancer.setCallbackTypes(types);
// 创建代理类实例，调用子类的createProxyClassAndInstance()方法
return this.createProxyClassAndInstance(enhancer, callbacks);
} catch (IllegalArgumentException | CodeGenerationException var9) {
throw new AopConfigException("Could not generate CGLIB subclass of " + this.advised.getTargetClass() + ": Common causes of this problem include using a final class or a non-visible class", var9);
} catch (Throwable var10) {
throw new AopConfigException("Unexpected AOP exception", var10);
}
}
// 获取回调方法
private Callback[] getCallbacks(Class<?> rootClass) throws Exception {
// 获取expose-proxy属性设置
boolean exposeProxy = this.advised.isExposeProxy();
boolean isFrozen = this.advised.isFrozen();
boolean isStatic = this.advised.getTargetSource().isStatic();
// 将aop拦截器封装在DynamicAdvisedInterceptor中
Callback aopInterceptor = new CglibAopProxy.DynamicAdvisedInterceptor(this.advised);
Object targetInterceptor;
if (exposeProxy) {
targetInterceptor = isStatic ? new CglibAopProxy.StaticUnadvisedExposedInterceptor(this.advised.getTargetSource().getTarget()) : new CglibAopProxy.DynamicUnadvisedExposedInterceptor(this.advised.getTargetSource());
} else {
targetInterceptor = isStatic ? new CglibAopProxy.StaticUnadvisedInterceptor(this.advised.getTargetSource().getTarget()) : new CglibAopProxy.DynamicUnadvisedInterceptor(this.advised.getTargetSource());
}
Callback targetDispatcher = isStatic ? new CglibAopProxy.StaticDispatcher(this.advised.getTargetSource().getTarget()) : new CglibAopProxy.SerializableNoOp();
// 添加主要的拦截器链
Callback[] mainCallbacks = new Callback[]{aopInterceptor, (Callback)targetInterceptor, new CglibAopProxy.SerializableNoOp(), (Callback)targetDispatcher, this.advisedDispatcher, new CglibAopProxy.EqualsInterceptor(this.advised), new CglibAopProxy.HashCodeInterceptor(this.advised)};
Callback[] callbacks;
if (isStatic && isFrozen) {
Method[] methods = rootClass.getMethods();
Callback[] fixedCallbacks = new Callback[methods.length];
this.fixedInterceptorMap = new HashMap(methods.length);
for(int x = 0; x < methods.length; ++x) {
List<Object> chain = this.advised.getInterceptorsAndDynamicInterceptionAdvice(methods[x], rootClass);
fixedCallbacks[x] = new CglibAopProxy.FixedChainStaticTargetInterceptor(chain, this.advised.getTargetSource().getTarget(), this.advised.getTargetClass());
this.fixedInterceptorMap.put(methods[x].toString(), x);
}
callbacks = new Callback[mainCallbacks.length + fixedCallbacks.length];
System.arraycopy(mainCallbacks, 0, callbacks, 0, mainCallbacks.length);
System.arraycopy(fixedCallbacks, 0, callbacks, mainCallbacks.length, fixedCallbacks.length);
this.fixedInterceptorOffset = mainCallbacks.length;
} else {
callbacks = mainCallbacks;
}
return callbacks;
}
}拦截器链在CGLIB中扮演者重要角色，从上面源码中看出拦截器被封装为了DynamicAdvisedInterceptor，那么其核心逻辑就应该在DynamicAdvisedInterceptor中，那看看DynamicAdvisedInterceptor都做了哪些事情。
DynamicAdvisedInterceptor都做了些啥工作？
java
private static class DynamicAdvisedInterceptor implements MethodInterceptor, Serializable {
@Nullable
public Object intercept(Object proxy, Method method, Object[] args, MethodProxy methodProxy) throws Throwable {
Object oldProxy = null;
boolean setProxyContext = false;
Object target = null;
// 获取要拦截的通知源
TargetSource targetSource = this.advised.getTargetSource();
Object var16;
try {
if (this.advised.exposeProxy) {
oldProxy = AopContext.setCurrentProxy(proxy);
setProxyContext = true;
}
target = targetSource.getTarget();
Class<?> targetClass = target != null ? target.getClass() : null;
// 获取拦截器链，这里的拦截器链是啥？从哪获取拦截器链？
List<Object> chain = this.advised.getInterceptorsAndDynamicInterceptionAdvice(method, targetClass);
Object retVal;
if (chain.isEmpty() && Modifier.isPublic(method.getModifiers())) {
Object[] argsToUse = AopProxyUtils.adaptArgumentsIfNecessary(method, args);
// 如果拦截器链为空，则直接进入拦截器链
retVal = methodProxy.invoke(target, argsToUse);
} else {
retVal = (new CglibAopProxy.CglibMethodInvocation(proxy, target, method, args, targetClass, chain, methodProxy)).proceed();
}
retVal = CglibAopProxy.processReturnType(proxy, target, method, retVal);
var16 = retVal;
} finally {
if (target != null && !targetSource.isStatic()) {
targetSource.releaseTarget(target);
}
if (setProxyContext) {
AopContext.setCurrentProxy(oldProxy);
}
}
return var16;
}
}啥是拦截器链？拦截器链从哪获取？
啥是拦截器链？从哪获取拦截器链？下面继续深入DefaultAdvisorChainFactory方法的getInterceptorsAndDynamicInterceptionAdvice()方法
java
public class DefaultAdvisorChainFactory implements AdvisorChainFactory, Serializable {
public List<Object> getInterceptorsAndDynamicInterceptionAdvice(Advised config, Method method, @Nullable Class<?> targetClass) {
/*
* 调用DefaultAdvisorAdapterRegistry构造方法获取通知适配器注册器，包括：
* 1. MethodBeforeAdviceAdapter
* 2. AfterReturningAdviceAdapter
* 3. ThrowsAdviceAdapter
*
* Adapter添加进List中的顺序就是上面的顺序。
*
* GlobalAdvisorAdapterRegistry.getInstance()实际上就是去获取DefaultAdvisorAdapterRegistry中的Adapter
*/
AdvisorAdapterRegistry registry = GlobalAdvisorAdapterRegistry.getInstance();
// config在这里就是前面所说的ProxyFactory。从ProxyFactory中获取通知
Advisor[] advisors = config.getAdvisors();
List<Object> interceptorList = new ArrayList(advisors.length);
Class<?> actualClass = targetClass != null ? targetClass : method.getDeclaringClass();
Boolean hasIntroductions = null;
Advisor[] var9 = advisors;
int var10 = advisors.length;
for(int var11 = 0; var11 < var10; ++var11) {
Advisor advisor = var9[var11];
// 切面型通知
if (advisor instanceof PointcutAdvisor) {
// 将通知强转为切面
PointcutAdvisor pointcutAdvisor = (PointcutAdvisor)advisor;
if (config.isPreFiltered() || pointcutAdvisor.getPointcut().getClassFilter().matches(actualClass)) {
MethodMatcher mm = pointcutAdvisor.getPointcut().getMethodMatcher();
boolean match;
if (mm instanceof IntroductionAwareMethodMatcher) {
if (hasIntroductions == null) {
hasIntroductions = hasMatchingIntroductions(advisors, actualClass);
}
match = ((IntroductionAwareMethodMatcher)mm).matches(method, actualClass, hasIntroductions);
} else {
match = mm.matches(method, actualClass);
}
if (match) {
/*
* 通过通知适配注册器获取方法拦截器，这里返回的是四种拦截器，分别为：
* ExposeInvocationInterceptor类型、AspectJAfterAdvice类型、AspectJAroundAdvice类型、MethodBeforeAdviceInterceptor类型
* 正好和前面系列文章一、二所描述的四种通知类型一致。
*/
MethodInterceptor[] interceptors = registry.getInterceptors(advisor);
if (mm.isRuntime()) {
MethodInterceptor[] var17 = interceptors;
int var18 = interceptors.length;
for(int var19 = 0; var19 < var18; ++var19) {
MethodInterceptor interceptor = var17[var19];
interceptorList.add(new InterceptorAndDynamicMethodMatcher(interceptor, mm));
}
} else {
interceptorList.addAll(Arrays.asList(interceptors));
}
}
}
} else if (advisor instanceof IntroductionAdvisor) {// 接口型通知
IntroductionAdvisor ia = (IntroductionAdvisor)advisor;
if (config.isPreFiltered() || ia.getClassFilter().matches(actualClass)) {
Interceptor[] interceptors = registry.getInterceptors(advisor);
interceptorList.addAll(Arrays.asList(interceptors));
}
} else {
Interceptor[] interceptors = registry.getInterceptors(advisor);
interceptorList.addAll(Arrays.asList(interceptors));
}
}
/*
* 这里返回的拦截器链为：
* 1.ExposeInvocationInterceptor
* 2.AspectJAfterAdvice
* 3.AspectJAroundAdvice
* 4.MethodBeforeAdviceInterceptor
*/
return interceptorList;
}
}在DefaultAdvisorChainFactory的getInterceptorsAndDynamicInterceptionAdvice方法中，主要工作是：
- 先获取通知适配器注册器
- 将注册器包装为可用的拦截器
在这过程中，DefaultAdvisorAdapterRegistry扮演者非常关键的角色。
java
public class DefaultAdvisorAdapterRegistry implements AdvisorAdapterRegistry, Serializable {
private final List<AdvisorAdapter> adapters = new ArrayList(3);
// 在构造方法里注册前置通知、后置通知和异常通知的适配器，
public DefaultAdvisorAdapterRegistry() {
this.registerAdvisorAdapter(new MethodBeforeAdviceAdapter());
this.registerAdvisorAdapter(new AfterReturningAdviceAdapter());
this.registerAdvisorAdapter(new ThrowsAdviceAdapter());
}
// wrap方法在AbstractAutoProxyCreator的buildAdvisors方法中已经讲解到了，用于构建Advisor数组，这里就不再讲解
public Advisor wrap(Object adviceObject) throws UnknownAdviceTypeException {
if (adviceObject instanceof Advisor) {
return (Advisor)adviceObject;
} else if (!(adviceObject instanceof Advice)) {
throw new UnknownAdviceTypeException(adviceObject);
} else {
Advice advice = (Advice)adviceObject;
if (advice instanceof MethodInterceptor) {
return new DefaultPointcutAdvisor(advice);
} else {
Iterator var3 = this.adapters.iterator();
AdvisorAdapter adapter;
do {
if (!var3.hasNext()) {
throw new UnknownAdviceTypeException(advice);
}
adapter = (AdvisorAdapter)var3.next();
} while(!adapter.supportsAdvice(advice));
return new DefaultPointcutAdvisor(advice);
}
}
}
public MethodInterceptor[] getInterceptors(Advisor advisor) throws UnknownAdviceTypeException {
List<MethodInterceptor> interceptors = new ArrayList(3);
// 获取通知
Advice advice = advisor.getAdvice();
// 判断通知是否是MethodInterceptor类型
if (advice instanceof MethodInterceptor) {
interceptors.add((MethodInterceptor)advice);
}
Iterator var4 = this.adapters.iterator();
while(var4.hasNext()) {
// 将通知强转为AdvisorAdapter类型
AdvisorAdapter adapter = (AdvisorAdapter)var4.next();
if (adapter.supportsAdvice(advice)) {
interceptors.add(adapter.getInterceptor(advisor));
}
}
if (interceptors.isEmpty()) {
throw new UnknownAdviceTypeException(advisor.getAdvice());
} else {
return (MethodInterceptor[])interceptors.toArray(new MethodInterceptor[0]);
}
}
public void registerAdvisorAdapter(AdvisorAdapter adapter) {
this.adapters.add(adapter);
}
}DefaultAdvisorAdapterRegistry类主要负责：
- 在构造方法里注册前置通知、后置通知和异常通知的适配器
- 包装Advisor
- 将Advisor包装为拦截器
既然获取到了拦截器链，那么每个拦截器链都做了些啥呢？回到DynamicAdvisedInterceptor的intercept()方法
调用拦截器链的proceed方法
视线回到DynamicAdvisedInterceptor的intercept方法，在
java
List<Object> chain = this.advised.getInterceptorsAndDynamicInterceptionAdvice(method, targetClass);执行完成之后，chain中存放好了拦截器链，分别是
- ExposeInvocationInterceptor
- AspectJAfterAdvice
- AspectJAroundAdvice
- MethodBeforeAdviceInterceptor
java
List<Object> chain = this.advised.getInterceptorsAndDynamicInterceptionAdvice(method, targetClass);
Object retVal;
if (chain.isEmpty() && Modifier.isPublic(method.getModifiers())) {
Object[] argsToUse = AopProxyUtils.adaptArgumentsIfNecessary(method, args);
// 如果拦截器链为空，则直接进入拦截器链
retVal = methodProxy.invoke(target, argsToUse);
} else {
// 调用拦截器链的proceed方法
retVal = (new CglibAopProxy.CglibMethodInvocation(proxy, target, method, args, targetClass, chain, methodProxy)).proceed();
}
retVal = CglibAopProxy.processReturnType(proxy, target, method, retVal);
var16 = retVal;后置通知实现逻辑：
java
public class AspectJAfterAdvice extends AbstractAspectJAdvice implements MethodInterceptor, AfterAdvice, Serializable {
public Object invoke(MethodInvocation mi) throws Throwable {
Object var2;
try {
var2 = mi.proceed();
} finally {
this.invokeAdviceMethod(this.getJoinPointMatch(), (Object)null, (Throwable)null);
}
return var2;
}
}java
public class ReflectiveMethodInvocation implements ProxyMethodInvocation, Cloneable {
protected final Object proxy;
@Nullable
protected final Object target;
protected final Method method;
protected Object[] arguments = new Object[0];
@Nullable
private final Class<?> targetClass;
@Nullable
private Map<String, Object> userAttributes;
protected final List<?> interceptorsAndDynamicMethodMatchers;
private int currentInterceptorIndex = -1;
@Nullable
public Object proceed() throws Throwable {
if (this.currentInterceptorIndex == this.interceptorsAndDynamicMethodMatchers.size() - 1) {
return this.invokeJoinpoint();
} else {
// 获取拦截器链的元素
Object interceptorOrInterceptionAdvice = this.interceptorsAndDynamicMethodMatchers.get(++this.currentInterceptorIndex);
if (interceptorOrInterceptionAdvice instanceof InterceptorAndDynamicMethodMatcher) {
InterceptorAndDynamicMethodMatcher dm = (InterceptorAndDynamicMethodMatcher)interceptorOrInterceptionAdvice;
Class<?> targetClass = this.targetClass != null ? this.targetClass : this.method.getDeclaringClass();
return dm.methodMatcher.matches(this.method, targetClass, this.arguments) ? dm.interceptor.invoke(this) : this.proceed();
} else {
return ((MethodInterceptor)interceptorOrInterceptionAdvice).invoke(this);
}
}
}
}这里总结下proceed的逻辑：
- 根据索引值获取拦截器链中的拦截器
- 要么调用拦截器的invoke方法，要么就调用proceed进行下一轮的递归
- proceed方法在这里起到了递归的作用
环绕通知实现逻辑：
java
public class AspectJAroundAdvice extends AbstractAspectJAdvice implements MethodInterceptor, Serializable {
public Object invoke(MethodInvocation mi) throws Throwable {
if (!(mi instanceof ProxyMethodInvocation)) {
throw new IllegalStateException("MethodInvocation is not a Spring ProxyMethodInvocation: " + mi);
} else {
ProxyMethodInvocation pmi = (ProxyMethodInvocation)mi;
ProceedingJoinPoint pjp = this.lazyGetProceedingJoinPoint(pmi);
JoinPointMatch jpm = this.getJoinPointMatch(pmi);
return this.invokeAdviceMethod(pjp, jpm, (Object)null, (Throwable)null);
}
}
protected ProceedingJoinPoint lazyGetProceedingJoinPoint(ProxyMethodInvocation rmi) {
return new MethodInvocationProceedingJoinPoint(rmi);
}
}java
public abstract class AbstractAspectJAdvice implements Advice, AspectJPrecedenceInformation, Serializable {
protected Object invokeAdviceMethod(JoinPoint jp, @Nullable JoinPointMatch jpMatch, @Nullable Object returnValue, @Nullable Throwable t) throws Throwable {
return this.invokeAdviceMethodWithGivenArgs(this.argBinding(jp, jpMatch, returnValue, t));
}
protected Object invokeAdviceMethodWithGivenArgs(Object[] args) throws Throwable {
Object[] actualArgs = args;
if (this.aspectJAdviceMethod.getParameterCount() == 0) {
actualArgs = null;
}
try {
ReflectionUtils.makeAccessible(this.aspectJAdviceMethod);
return this.aspectJAdviceMethod.invoke(this.aspectInstanceFactory.getAspectInstance(), actualArgs);
} catch (IllegalArgumentException var4) {
throw new AopInvocationException("Mismatch on arguments to advice method [" + this.aspectJAdviceMethod + "]; pointcut expression [" + this.pointcut.getPointcutExpression() + "]", var4);
} catch (InvocationTargetException var5) {
throw var5.getTargetException();
}
}
}总结下：
- AspectJAroundAdvice的invoke方法作用为获取代理方法以及正在处理的切点对象
- 将代理方法、切点信息传入AbstractAspectJAdvice的invokeAdviceMethod里进行进一步的参数绑定
- invokeAdviceMethodWithGivenArgs方法调用aspectJAdviceMethod.invoke方法，调用AspectJTest类中aroundTest方法
前置通知实现逻辑：
java
public class MethodBeforeAdviceInterceptor implements MethodInterceptor, BeforeAdvice, Serializable {
private final MethodBeforeAdvice advice;
public Object invoke(MethodInvocation mi) throws Throwable {
this.advice.before(mi.getMethod(), mi.getArguments(), mi.getThis());
return mi.proceed();
}
}
public class AspectJMethodBeforeAdvice extends AbstractAspectJAdvice implements MethodBeforeAdvice, Serializable {
public void before(Method method, Object[] args, @Nullable Object target) throws Throwable {
this.invokeAdviceMethod(this.getJoinPointMatch(), (Object)null, (Throwable)null);
}
}可以注意到：
- 代理类的before方法是由AspectJMethodBeforeAdvice类before方法执行的
- 在before方法执行完后，调用了MethodInvocation的proceed方法，最终是回到了AspectJAfterAdvice的invoke方法
这整个过程随着AspectJAfterAdvice执行完，整个Demo代码也都走完了。虽然结合着文章开头的时序图，辅以源码来学习整个SpringAOP的运作过程，但也并不能把整个过程描述的非常清楚，下面以本人非常喜欢的一种方式把整个过程展开来。
以上面这种文本方式，结合着时序图，能够进一步加深对CGLIB源码逻辑的理解。
JDK动态代理
实例演示
JDK 动态代理的实现主要是借助 InvocationHandler 接口、Proxy 类实现的。在使用时，我们得定义一个位于代理类与委托类之间的中介类，就像传统的微商代理，其实并不是直接跟厂家接触，他们之间可能还会存在一层中介。而这个中介类，需要实现 InvocationHandler 接口：
java
public interface InvocationHandler {
Object invoke(Object proxy, Method method, Object[] args);
}- proxy：表示程序运行期间生成的代理类对象，后面可以看见使用 Proxy.newProxyInstance()生成
- method：表示代理对象被调用的方法
- args：表示代理对象被调用的方法的参数
调用代理对象的每个方法实际最终都是调用 InvocationHandler 的 invoke 方法。后面我们将论证这个结论。
这里我们使用 AgencyHandler 表示中介类，中介类定义为：
java
public class AgencyHandler implements InvocationHandler {
// 委托类对象
private Object target;
public AgencyHandler(){}
public AgencyHandler(Object target){
this.target = target;
}
@Override
public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
long startTime = System.currentTimeMillis();
// 使用反射执行委托类对象具体方法
Object result = method.invoke(target, args);
System.out.println(method.getName() + " cost time is:" + (System.currentTimeMillis() - startTime));
return result;
}
}通过 Proxy 的静态方法 newProxyInstance 生成代理对象：
java
public class Main {
public static void main(String[] args) {
AgencyHandler agencyHandler = new AgencyHandler(new Factory());
// 创建代理对象
Operator operator = (Operator) Proxy.newProxyInstance(Operator.class.getClassLoader(),
new Class[]{Operator.class},
agencyHandler);
operator.sale();
operator.expand();
}
}
public static Object newProxyInstance(ClassLoader loader, Class<?>[] interfaces, InvocationHandler h)- loader：表示类加载器，将运行期动态生成的代理类加载到内存
- interfaces：表示委托类的接口，生成代理类需要实现的接口
- h：InvocationHandler 实现类对象，负责连接代理类和委托类的中介类
正如预期运行结果为：
txt
sale ....
sale cost time is:1s
expand ....
expand cost time is:0s这里我们将委托类对象 new Factory() 作为 AgencyHandler 构造方法入参创建了 agencyHandler 对象，然后通过 Proxy.newProxyInstance(…) 方法创建了一个代理对象，实际代理类就是这个时候动态生成的。我们调用该代理对象的方法就会调用到 agencyHandler 的 invoke 方法（类似于静态代理），而 invoke 方法实现中调用委托类对象 new Factory() 相应的 method（类似于静态代理）。因此，动态代理内部可以看成是由两组静态代理构成。
代理类源码分析
既然 JDK 动态代理的代理对象是运行期生成的，那么它在运行期也会对应一段字节码，可以使用 ProxyGenerator.generateProxyClass 方法进行获取。为了让大家一步到位，这里贴一下这个工具类：
java
public class ProxyUtils {
public static boolean saveProxyClass(String path, String proxyClassName, Class[] interfaces) {
if (proxyClassName == null || path == null) {
return false;
}
byte[] classFile = ProxyGenerator.generateProxyClass(proxyClassName, interfaces);
FileOutputStream out = null;
try {
out = new FileOutputStream(path);
out.write(classFile);
out.flush();
return true;
} catch (Exception e) {
e.printStackTrace();
} finally {
try {
out.close();
} catch (IOException e) {
e.printStackTrace();
}
}
return false;
}
}将得到的字节码文件进行反编译就能看到其中的源代码了：
java
import com.limynl.proxy.Operator;
import java.lang.reflect.InvocationHandler;
import java.lang.reflect.Method;
import java.lang.reflect.Proxy;
import java.lang.reflect.UndeclaredThrowableException;
public final class $Proxy0 extends Proxy implements Operator {
// 这 5 个方法分别是 equals、expand、toString、sale、hashCode
private static Method m1;
private static Method m3;
private static Method m2;
private static Method m4;
private static Method m0;
static {
try {
m1 = Class.forName("java.lang.Object").getMethod("equals", new Class[] { Class.forName("java.lang.Object") });
m3 = Class.forName("com.limynl.proxy.Operator").getMethod("expand", new Class[0]);
m2 = Class.forName("java.lang.Object").getMethod("toString", new Class[0]);
m4 = Class.forName("com.limynl.proxy.Operator").getMethod("sale", new Class[0]);
m0 = Class.forName("java.lang.Object").getMethod("hashCode", new Class[0]);
return;
} catch (NoSuchMethodException noSuchMethodException) {
throw new NoSuchMethodError(noSuchMethodException.getMessage());
} catch (ClassNotFoundException classNotFoundException) {
throw new NoClassDefFoundError(classNotFoundException.getMessage());
}
}
// 构造方法接收一个 InvocationHandler 对象为参数
public $Proxy0(InvocationHandler paramInvocationHandler) {
// 传至父类中的 InvocationHandler 类型变量 h
super(paramInvocationHandler);
}
public final boolean equals(Object paramObject) {
try {
// this.h.invoke 将会调用实现了 InvocationHandler 接口的类，上面我们传入的是 agencyHandler 对象，
// 因此会调用 AgencyHandler 的 invoke 方法
// 同时这里也印证了，invoke 的方法的第一个参数就是代理对象本身。下面其余方法类似
return ((Boolean)this.h.invoke(this, m1, new Object[] { paramObject })).booleanValue();
} catch (Error|RuntimeException error) {
throw null;
} catch (Throwable throwable) {
throw new UndeclaredThrowableException(throwable);
}
}
public final void expand() {
try {
this.h.invoke(this, m3, null);
return;
} catch (Error|RuntimeException error) {
throw null;
} catch (Throwable throwable) {
throw new UndeclaredThrowableException(throwable);
}
}
public final String toString() {
try {
return (String)this.h.invoke(this, m2, null);
} catch (Error|RuntimeException error) {
throw null;
} catch (Throwable throwable) {
throw new UndeclaredThrowableException(throwable);
}
}
public final void sale() {
try {
this.h.invoke(this, m4, null);
return;
} catch (Error|RuntimeException error) {
throw null;
} catch (Throwable throwable) {
throw new UndeclaredThrowableException(throwable);
}
}
public final int hashCode() {
try {
return ((Integer)this.h.invoke(this, m0, null)).intValue();
} catch (Error|RuntimeException error) {
throw null;
} catch (Throwable throwable) {
throw new UndeclaredThrowableException(throwable);
}
}
}- 从中我们可以看出动态生成的代理类是以 $Proxy 为类名前缀，继承自 Proxy，并且实现了 Proxy.newProxyInstance(…) 第二个参数传入的所有接口。
- 代理类的构造方法传入的是 InvocationHandler 对象，即 Proxy.newProxyInstance(…) 第三个参数，同时 sale()、expand() 都交给 h 去处理，最终会传递到 agencyHandler 对象的 invoke 方法里面，该方法里面继续使用反射的方式找到最终需要调用的委托类的方法。从而也论证了开头说的：调用代理对象的每个方法实际最终都是调用 InvocationHandler 的 invoke 方法。
- 所以 InvocationHandler 的子类 AgencyHandler 连接代理类和委托类的中介类。
到这里我们已经把 JDK 动态代理的原理讲完了，所以大家可以在脑海中回忆一下：JDK 动态代理内部可以看成是由两组静态代理构成，是不是这个意思？
通过这个代理类也将明白（这里需要拿笔圈起来^_^）：
- 为什么在 Proxy.newProxyInstance 过程需要接口：因为生成的代理类需要实现这个接口
- 为什么 JDK 动态代理只能代理接口：因为 java 是单继承，代理类已经继承了 Proxy，因此没办法在继承另外一个类
- JDK 动态代理中除使用了反射外，也操作了字节码
